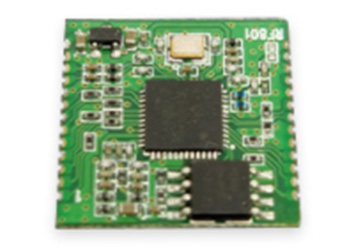

RF801 is a digital radio receiver module, support digital radio standards including FM, FM RDS, DAB, DAB+.

RF801 provides revolutionary advances in size, power consumption, and cost. This module simplifies the customer's development process and time, greatly reducing development costs.

■  Worldwide FM band support (76–108 MHz)

■ Advanced RDS/RBDS decoder (Optional)

■ FM sensitivity:-110dBm

■ DAB sensitivity:-99dBm

■ DAB, DAB+ Band III support (168–240 MHz)

■ OFDM channel demodulator

    ● Simultaneous decoding of up to 4 service components

    ● Seamless dynamic multiplex reconfiguration

■ Advanced seek functionality

■ L-R stereo audio output

■ I2S digital audio out with ASRC

■ Integrate 97dB stereo audio DAC

■ Built-in high performance stereo DAC

■ Full range of analog and digital signal quality metrics

■ Fully-integrated VCO / PLL /synthesizer

■ Fully-integrated advanced AGC and alignment

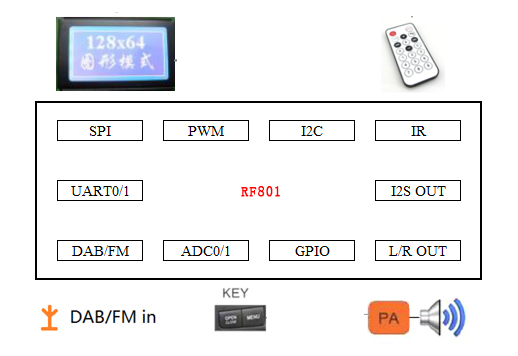

■ Support IR/keypad, rotary encoder, uart

■ Support low power mode

■ Support RTC

■ Support Master Mode/Slave Mode

■ Module Working voltage：DC 3.3V (±5%)

■ Temperature Range

    ● Operation:  0 to +70℃

    ● Storage:  -40 to +85℃
